xTool RA2 Pro Review: Is a 4-in-1 Rotary Worth Adding

I bought the xTool RA2 Pro in March, mostly because I was tired of hand-holding tumblers under the laser and hoping they would not roll. For about a year I had been doing round objects the slow way: mark the center, tape the tumbler to a block, rotate it by hand a few degrees at a time, and pray the spacing came out even. It worked for a dozen or so cutting boards with routed edges, but the moment a customer ordered a 20-ounce tumbler with their dog's name and a line of paw prints around it, I knew I needed something that would turn the work for me.

Six months later, the RA2 Pro has earned a permanent spot on my bench. It is not the cheapest rotary attachment xTool makes, and it is not the simplest to set up the first time. But for someone who engraves tumblers, wine glasses, and the occasional ring, it has paid for itself in time saved and ruined blanks avoided. This is the long-term review I wish I had read before I bought it.

How I've Used It

My setup is a two-car garage with a workbench along the back wall, a window I vent fumes through, and a shop vac. I run an xTool S1, which is the 40-watt diode machine, and I use the RA2 Pro with the riser that xTool sells for it. The riser matters more than the manual admits: without it, the roller assembly sits too low for the laser to focus on a 20-ounce tumbler, and you will spend an afternoon shimming the thing with scrap wood like I did before I broke down and ordered the riser.

In the first week I engraved twelve 20-ounce powder-coated tumblers for a local realtor who wanted them as closing gifts. Each one got a name, a house number, and a simple line of mountains around the base. The first tumbler took me about forty minutes because I was still learning the XCS software's rotary settings. By the third one I had the routine down to about twelve minutes each, and by the end of the batch I was confident enough to leave the machine running while I swept the garage.

Since then I have used the RA2 Pro for wine glasses, a stainless steel water bottle, and a ring for a friend who proposed to his girlfriend in April. The ring chuck is the part I was most skeptical about, and it turned out to be the most pleasant surprise of the whole unit.

The wine glasses were a lesson in patience. A bride-to-be ordered twelve stemless glasses with a monogram and the wedding date, and glass engraves differently from powder coat. A diode laser does not cut into glass so much as frost the surface, and on the RA2 Pro's rollers that frosting came out even all the way around, which is the part that is nearly impossible by hand. I learned to lay a strip of damp paper towel over the design area, which keeps the frosting smooth instead of chipped. The first two glasses went in the scrap box. The other ten went out the door, and the spacing on all ten matched closely enough that they looked like a set rather than ten separate attempts.

Setup: What the Manual Doesn't Tell You

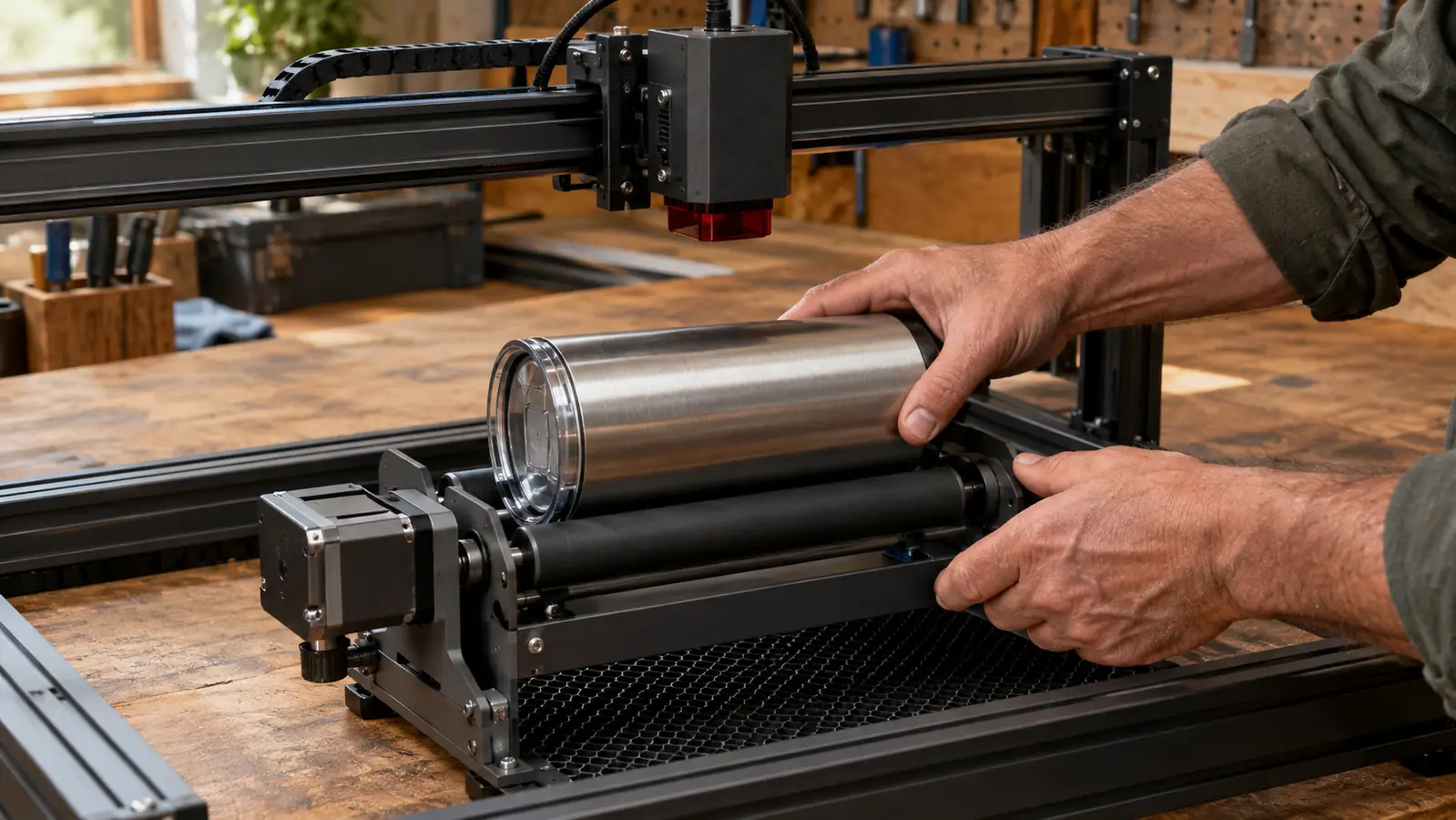

The RA2 Pro arrives mostly assembled. You get the roller base, two rubber rollers, a chuck assembly, a tail stock, and a box of small parts. The first thing I did wrong was mount it without checking whether my machine needed the riser base, which xTool sells separately. The second thing I did wrong was tighten the chuck onto a wine glass stem with the same force I would use on a drill bit. The stem cracked. That was my fault, not the machine's, but it is the kind of mistake the manual does not warn you about.

The manual also assumes you know which roller position to use for which object. For a tumbler, the two rubber rollers carry the weight and the drive roller spins the blank. For a wine glass, you use the chuck on one end and the tail stock on the other, and you have to be careful not to overtighten either one. For a ring, you mount it on the small mandrel that comes in the kit. The 4-in-1 name means you are not buying a separate ring chuck later, which is the main reason I chose this over the older RA2.

One more thing: the RA2 Pro connects to the laser with a cable that plugs into the machine's rotary port. On the S1, that port is on the back, and the cable is long enough to reach the front of the machine where I like to keep the roller. If you have an F1 or F1 Ultra, check the port location before you buy, because the cable routing is different and a few users on the xTool Facebook group have complained about the cable pinching under the lid.

The software side took me longer than the hardware. In XCS you switch the processing mode to rotary, pick which attachment you are using, and enter the diameter of the object. Get the diameter wrong and the design stretches or squashes around the cup, so I keep a cheap pair of digital calipers on the bench and measure every new blank at the exact height the text will sit, because most tumblers taper. My first realtor tumbler came out with a name that looked slightly squat, and the cause was that I had measured the top rim instead of the middle where the engraving went. Now I write the measured diameter on a strip of masking tape on the box of blanks, so the next batch starts from a known number.

Accuracy and Repeatability Over Six Months

The reason to buy a rotary attachment is repeatability, and the RA2 Pro delivers it. I have now run more than sixty tumblers through this unit, and the seam where the engraving meets itself is consistently within about a millimeter. On a 20-ounce tumbler with a 360-degree design, that means the paw prints line up and the name wraps around without a visible jump.

The one accuracy problem I hit was in May, when a tumbler came out with a faint skip about a third of the way around. I checked the rollers and found a thin film of powder-coat dust had built up on the drive roller, so the tumbler was slipping slightly. A wipe with a damp rag fixed it, and I have made a habit of cleaning the rollers after every batch of powder-coated blanks. That is maintenance, not a design flaw, but it is worth knowing before you blame the machine.

I also tested the RA2 Pro against the method I used before: hand-rotating a tumbler on a block. I engraved the same name and the same paw-print pattern on two identical tumblers, one by hand and one with the rotary. The hand-rotated one took 34 minutes and had a visible gap where the letters did not quite meet. The rotary one took 11 minutes and the seam was clean. That comparison is the whole argument for owning one of these.

Over six months the rubber on the rollers has held up better than I expected. I check them for flat spots every few weeks by rolling a clean tumbler slowly by hand and feeling for a bump, and so far there is none. The bearings still turn smoothly, and the only part that shows wear is the knurled knob on the chuck, which has picked up a little shine from my fingers. I keep the whole unit under a dust cover when it is not in use, because the garage gets fine sawdust from the table saw, and dust on the rollers is the one thing I have seen cause a problem.

The hand-rotated tumbler took 34 minutes and had a visible gap. The same design on the RA2 Pro took 11 minutes and the seam was clean.

What the 4-in-1 Design Actually Gets You

The RA2 Pro is called 4-in-1 because it handles four kinds of work: rollers for cylinders like tumblers and bottles, a chuck for wine glasses and goblets, a tail stock for longer pieces, and a ring mandrel. In practice I use the rollers for about 80 percent of my jobs, the chuck for wine glasses and the occasional candlestick, and the ring mandrel for the handful of ring orders I have taken.

The ring mandrel is the part that surprised me. I expected it to be a gimmick, but in April I engraved a stainless steel band with a date and two initials, and the result was clean enough that my friend came back a week later asking whether I could do the wedding bands too. The mandrel holds the ring firmly and the software has a ring mode that calculates the circumference for you. It is not a jeweler's tool, but for a hobbyist who gets the occasional ring request, it is genuinely useful.

The tradeoff is that the RA2 Pro is bigger and heavier than the older RA2, and it takes up a permanent spot on my bench. I do not mind that, because I use it almost every week. But if you only engrave a tumbler once a year, the extra size and the higher price are hard to justify.

Switching between modes is quicker than I feared. Going from rollers to the chuck takes me about five minutes now, most of it spent loosening and re-seating the thumb screws and checking that the chuck jaws open evenly. The first few times it took closer to twenty, mostly because I kept second-guessing which way the tail stock should face. A habit from teaching shop helps here: I taped a small card to the inside of the cabinet door with the four setups drawn out, so I am not reading the manual every time a different job comes in.

Who This Is For

The xTool RA2 Pro is for someone who already owns a compatible xTool laser and has discovered that round objects are a pain to engrave by hand. If you sell tumblers at craft fairs, if you personalize wine glasses for weddings, or if you have a steady stream of Etsy orders that involve anything cylindrical, this attachment will pay for itself in time saved and blanks not wasted.

It is also for the person who wants one tool that does not force them to buy a second one later. The 4-in-1 design means the ring mandrel is in the box, not a separate purchase you discover after your first ring order. That is the kind of thing a retired shop teacher notices: buy once, measure twice, and do not end up with a drawer full of single-purpose accessories.

Who Should Skip It

If you do not own an xTool laser, the RA2 Pro is not the place to start. It is an accessory, not a machine, and it only works with the S1, F1, F1 Ultra, P2, M1 Ultra, and a few other models that have a rotary port. If you have a different brand of laser, look for a rotary that matches that machine instead of trying to adapt this one.

I would also tell a beginner to skip it until they have engraved a few dozen flat objects. The RA2 Pro adds a second axis of things to learn, and if you are still fighting focus distance and material settings on flat cutting boards, a rotary will just give you more variables to troubleshoot. Learn the basics first, then add the rotary when the flat work feels boring.

And if your work is almost all flat, it is fair to wait. A rotary does not make a cutting board or a leather patch any better. It only earns its bench space when round objects show up in your orders often enough that hand-rotating them is costing you blanks and evenings. When that happens you will know, because you will be the person standing at the laser at ten at night, nudging a tumbler two degrees at a time and wondering why you are still doing it that way.
